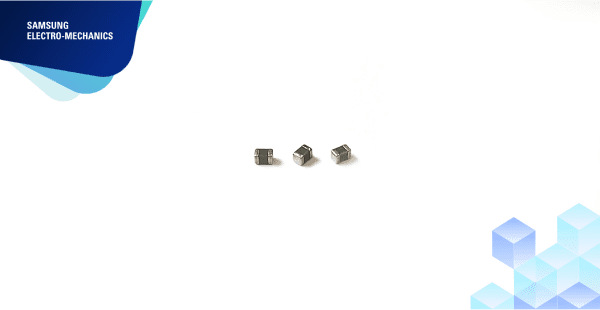

▷ We have developed and started mass production of the CL21C333JBQ1PN# and CL21C223JBQ1PN# models, which feature a capacitance range of 22nF to 33nF at a rated voltage of 50V within a compact 0805 inch (2.0×1.25mm) size and a C0G temperature range (-55 to 125℃). Samples are also available upon request.
▷ As the trend towards miniaturization in modules for in-vehicle GPS antennas, smart (keyless) entry systems, and connected car systems continues to grow, the demand for smaller multilayer ceramic capacitors (MLCCs) is also on the rise.
▷ In response to this demand, Samsung Electro-Mechanics has applied its proprietary ultrafine ceramic and electrode materials along with ultra-precise multilayer technology to reduce the size from the previous 1206 inch (3.2x1.6mm) C0G models to 0805 inch (2.0x1.25mm), while increasing the capacitance of the prior 10nF to up to 33nF. This meets the requirements for miniaturization and higher capacitance in these applications. Additionally, we plan to expand product coverage further by developing new models with capacitances of 47nF and 56nF.
(C0G: Capacitance change rate in the temperature range of -55°C to 125°C : 0±30ppm/℃)
Lineup of C0G (High-capacitance)
Size (inch/mm) | Rated Voltage & Capacitance | Application Example |
In MP | New | Under Dev. (2025.Q1) |
50V | 50V | 25V |
0805/2012 | 10㎋ | 22㎋ | 33㎋ | 47㎋* | 56㎋* | Communication Module for Network |
* CL21C563JAY1PN#(47㎋), CL21C473JAY1PN#(56㎋)

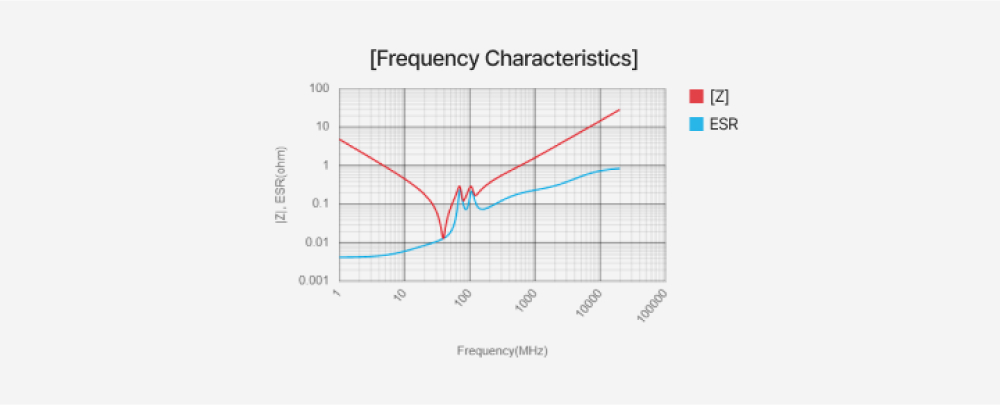

Frequency Characteristics
