2024.05.22

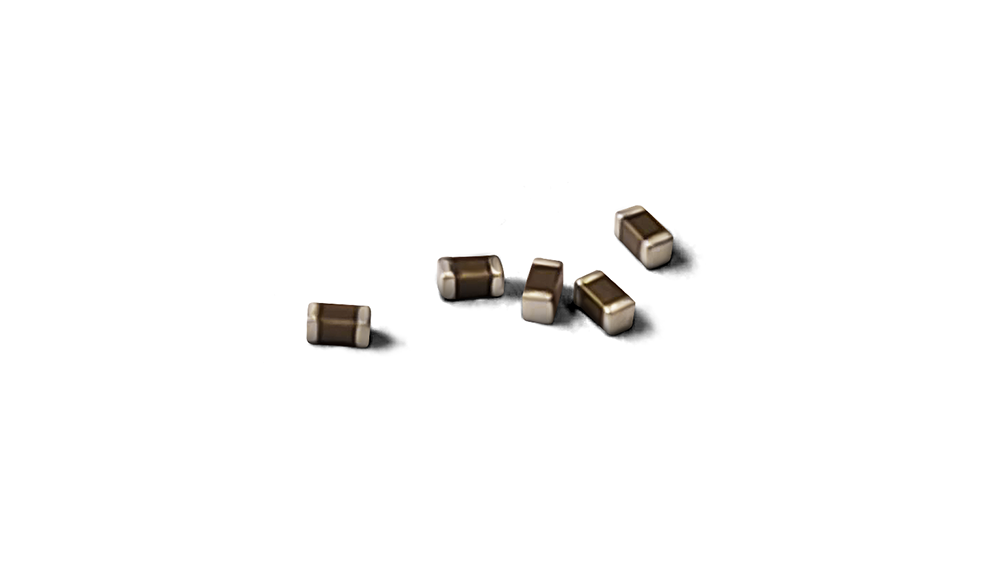

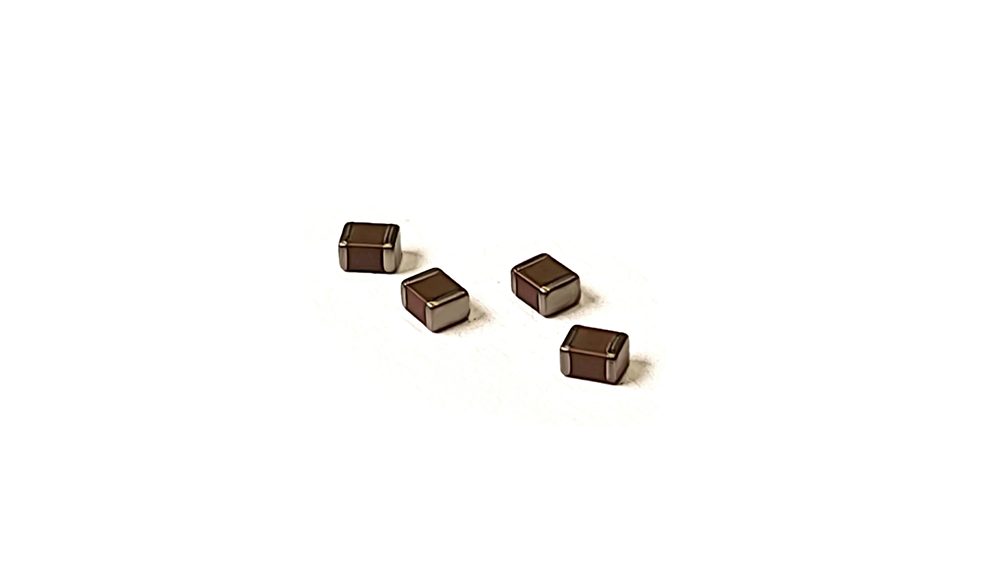

サムスン電機、車載用のMLCC 2種（3216 mm X7R 2.2nF 2000V、3216 mm X7R 22nF 1000V）を発売

3.2×1.6mm（1206 inch）サイズ、X7R（-55 to 125℃）、定格1000V以上で静電容量2.2～22nFを実現しています。


▷ xEVに特化した高電圧セラミックコンデンサCL31B222KJHRPN#、CL31B223KIHRPN#（以下、「本製品」）を開発し、量産を開始しました。サンプルの提供も可能です。



▷ 本製品はClass 2（高誘電率系）の高電圧製品で、 既存の同一サイズ、同一定格の電圧製品に比べて容量を2倍に拡大し、電力効率と高速安定性を必要とする400V～800Vの急速充電システムの設計要求も満たします。



▷ 自動車の電動化及び高機能化により、車両1台に搭載されるMLCCの数量が急激に増加し、これによりMLCCの小型化、電圧安定性、静電容量の拡大が求められています。



▷ サムスン電機は独自のセラミック及び電極材料の微粒化技術を利用して、定格電圧1000V以上の高電圧MLCCのラインナップを持続的に拡大しています。







Samsung Size Capacitance Rated Voltage TCC
CL31B222KJHRPN#
 3.2×1.6mm 2.2nF 2000V X7R
CL31B223KIHRPN#
 3.2×1.6mm 22nF 1000V X7R

(X7R : -55℃~125℃ における容量変化率 : ±15%)



Frequency Characteristics
