技术 - Article 2024.10.23

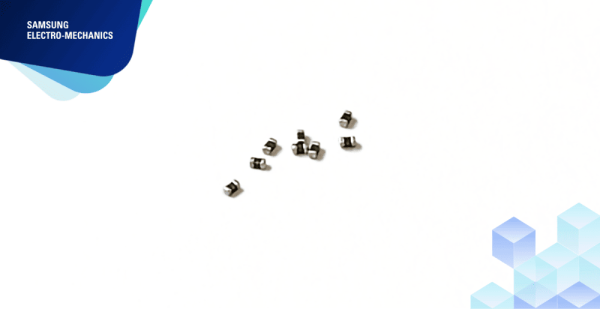

三星电机车规MLCC 0201 inch C0G 100~220㎊新品问世

▷ 开发出在0201 inch(0.6×0.3mm)、C0G(-55 to 125℃)、电压 50V下实现电容100~220㎊的CL03C221JB31PN#等3个item，并已量产。可提供样品。



▷ 随着ADAS、IVI、通信（Wifi/BT/5G/NAD等）模块和SiP模块高集成度、高密度、小型化Trend的扩散，对MLCC的小型化需求也在逐渐增加。



▷ 对此，三星电机采用独有的陶瓷及微粒化电极材料及超精密的叠层工艺，将C0G尺寸从原来的0402 inch (1.0×0.5mm)缩小到0201 inch (0.6×0.3mm), 并确保了220pF容值，满足对应Application的小型化、高容化需求，同时将通过进一步开发，持续扩大1~100pF以下产品的Coverage和供应。





Samsung

Size

(inch/mm)

Capacitance

Rated Voltage

TCC

CL03C221JB31PN#

0201/0603

220㎊

50Vdc

C0G

CL03C151JB31PN#

150㎊

CL03C101JB31PN#

100㎊

(C0G : -55℃~125℃ 温度范围内容值变化率 : 0±30ppm/℃)



Lineup of Small-Sized & High-Capacitance C0G

 Size

(inch/mm)

Rated Voltage & Capacitance

Application

Example

New

Under Dev.

(2025)

50Vdc

50Vdc

0201/0603

220㎊

150㎊
100㎊

33㎊*

1㎊*

Communication Module for Network

* CL03C330JB31PN# (33㎊),  CL03C010BB31PN# (1㎊)



Frequency Characteristics
