Chip Resistor

Thin Film Resistor

Product Search Component Library Buy Now

用薄金属实现的 Resistor

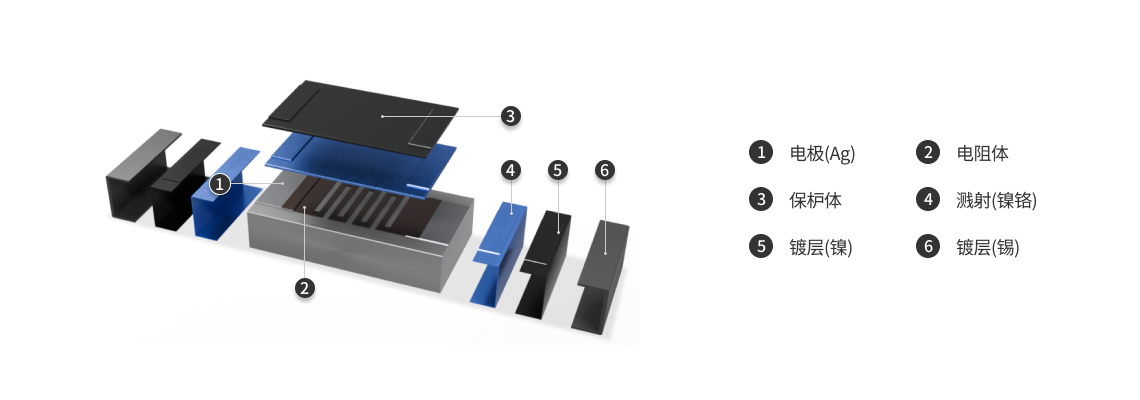

与普通产品(General)相比是高精密产品，为实现高精密特性，用薄金属制成电阻体的结构。
具有超精密电阻偏差和高精度温度变化特性的产品。

Long Term high stability high precision, Low T.C.R.
可用于精密测量、Converters、Server board、Telecom、Headset
确保比国际标准 ASTM B 809-95 更加强化的耐硫性能
利用特有材料技术，实现耐受最高水平腐蚀条件(105℃/720hr)的性能

Thin Film

Thin Film Lineup - Type, Size Inch/(mm), Feature, Watt [W], Resistance Tolerance[%], T.C.R [ppm/℃], Resistance Range, Operation Temperature Range [℃]
Type Size Inch/(㎜) Feature Watt [W] Resistance
Tolerance [%]		 T.C.R
[ppm/℃]		 Resistance
Range		 Operation
Temperature
Range [℃]
RT1005 0402(1005) 1/16 ±0.10%
±0.25%		 ±25ppm/℃ 100~47KΩ -55~155℃
RT1608 0603(1608) 1/10

应用

Lineup

产品搜索
