Resistor that Reduces Mounting Space

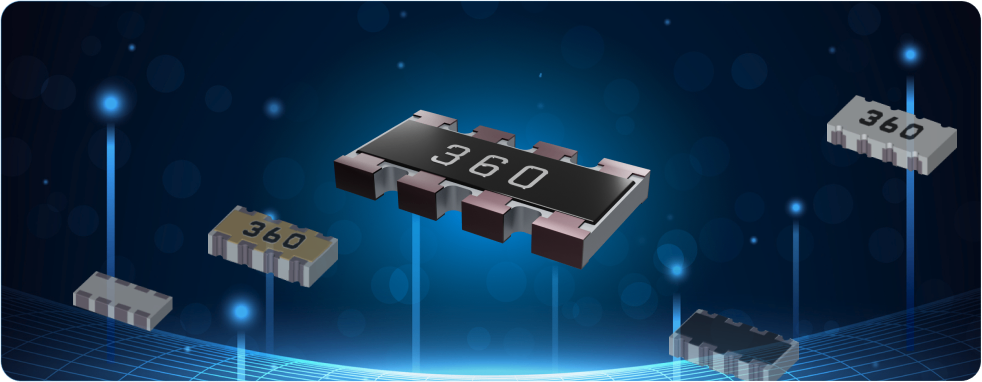

Array resistors are increasingly being used because they can reduce mounting time and cost by reducing the number of mountings,
thereby improving SMT productivity. Used primarily by semiconductor companies, array resistors are recognized for
their quality and performance.
- Various Structure

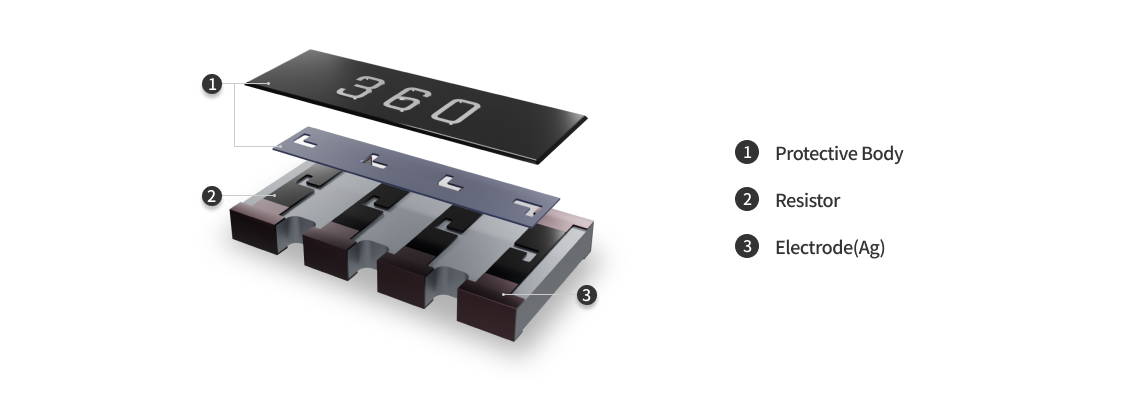

- Array Products are Available in a Variety of Structures with Resistors on or under the Substrate, Depending on the Application.
- Small Array Resistor

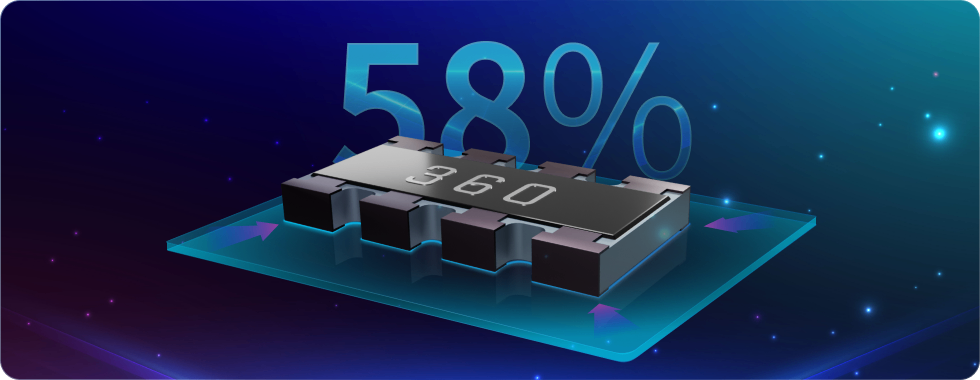

- Small, Lightweight, and Thin 0603 Array (58% Less Mounting Area Compared to 1005 Array)
Array
| Type | Size Inch/(㎜) | Element (㎜ x n) | Feature | Watt [W] | Resistance Tolerance [%] |
Resistance Range |
Operation Temperature Range [℃] |
|---|---|---|---|---|---|---|---|
| RM062P | 0302(0806) | 0603 x 2R |  |
1/32 | ±5% | 10~1MΩ | -55~125℃ |
| RM064P | 0502(1406) | 0603 x 4R |  |
||||
| RF062P | 0302(0806) | 0603 x 2R |  |
||||
| RF064P | 0502(1406) | 0603 x 4R |  |
||||
| RM102P | 0404(1010) | 1005 x 2R |  |
1/16 | ±1% ±2% ±5% |
1~1MΩ | -55~155℃ |
| RM104P | 0804(2010) | 1005 x 4R |  |
||||
| RK102P | 0404(1010) | 1005 x 2R |  |
||||
| RK104P | 0804(2010) | 1005 x 4R |  |
||||
| RP102P | 0404(1010) | 1005 x 2R |  |
||||
| RP104P | 0804(2010) | 1005 x 4R |  |
Application
-
Computer
-
Solid State Drive
-
Display
-
Mobile Phone
-
Tablet
-
Network
-
Server
-
Damping Resistance
-
Pull-up/down Resistance
-
Termination for Digital Circuits
-
Memory Module
