Chip Resistor

Automotive Resistor

Product Search Component Library Buy Now

Resistor for Automotive Use

A family of products that guarantees AEC-Q200 reliability for use in various automotive electrical devices and ECUs.

Automotive Resistor
Product Search

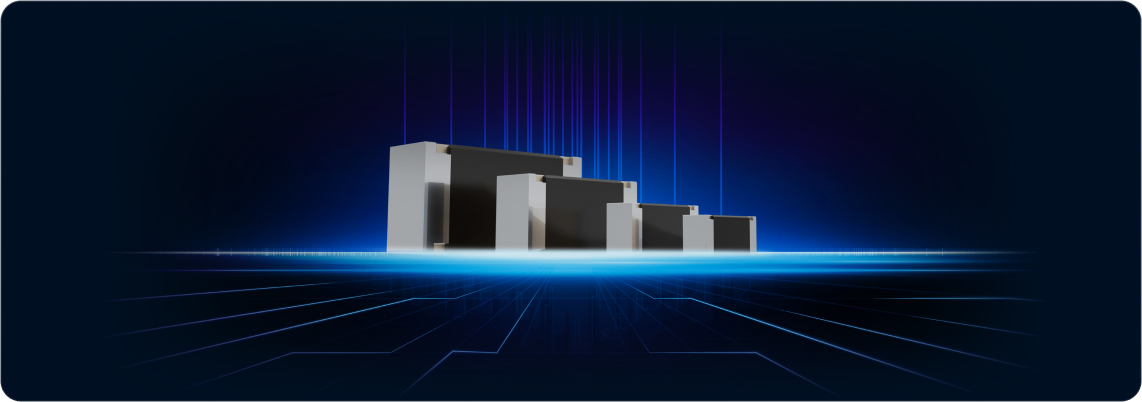

Wide Selection of Size & Wide Resistance Range
Product Available in a Wide Variety of Sizes and with a Wide Range of Resistances

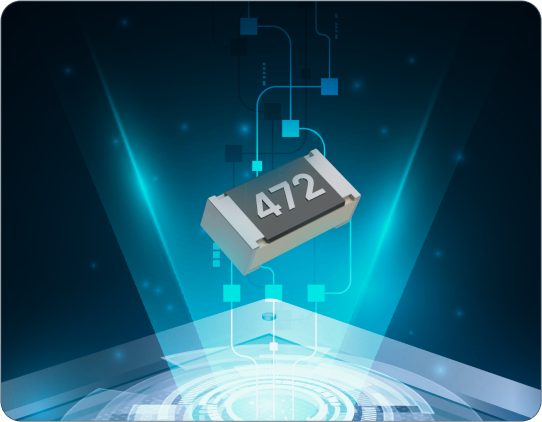

Excellent Characteristics
Product with Excellent Electrical and Mechanical Properties

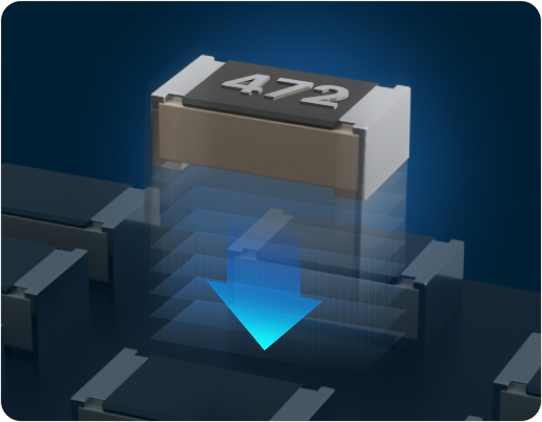

High Speed Automatic Chip
Placement on PCBs
Product that Enables High-Speed Mounting of Chips on PCBs

Automotive General

Automotive General Lineup - Type, Size Inch/(mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Type Size Inch/(㎜) Feature Watt [W] Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RA0603 0201(0603) 1/20 ±1%
±2%
±5%		 1~10MΩ -55~125℃
RA1005 0402(1005) 1/16 ±0.5%
±1%
±2%
±5%		 -55~155℃
RA1608 0603(1608) 1/10
RA2012 0805(2012) 1/8
RA3216 1206(3216) 1/4

Automotive High Power

Automotive High Power Lineup - Type, Size Inch/(mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Type Size Inch/(㎜) Feature Watt [W] Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RAW2012 0805(2012) 1/2 ±0.5%
±1%
±2%
±5%		 1~10MΩ -55~155℃

Automotive CSR (Thick Film)

Automotive CSR (Thick Film) Lineup - Series, Type, Size Inch/(mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Series Type Size Inch/(㎜) Feature Watt [W] Resistance
Tolerance [%]		 Resistance
Range		 Operation
0.1Temperature
Range [℃]
RAU RAU1005 0402(1005) 1/8 ±1% 0.020~0.100Ω -55~155℃
RAU1608 0603(1608) 1/4 ±1% 0.010~0.100Ω
RAU2012 0805(2012) 1/3 ±1%
RAU3216 1206(3216) 1/2 ±1%
RAU3225 1210(3225) 2/3 ±1%
RAU5025 2010(5025) 3/4 ±1%
RAU6432 2512(6432) 1 ±1%
RAUT RAUT1005 0402(1005) 1/8 ±1% 0.100~0.976Ω -55~155℃
RAUT1608 0603(1608) 1/4 ±1%
RAUT2012 0805(2012) 1/3 ±1%
RAUT3216 1206(3216) 1/2 ±1%
RAUT3225 1210(3225) 2/3 ±1%
RAUT5025 2010(5025) 3/4 ±1%
RAUT6432 2512(6432) 1 ±1%

*Under development

Automotive CSR (Metal)

Automotive CSR (Metal) Lineup - Series, Type, Size Inch/(mm), Feature, Watt [W], Resistance Tolerance[%], Resistance Range, Operation Temperature Range [℃]
Series Type Size Inch/(㎜) Feature Watt [W] Resistance
Tolerance [%]		 Resistance
Range		 Operation
Temperature
Range [℃]
RAC *RAC6432 (Under development) 2512(6432) (Under development) 2, 3 (Under development) ±0.5%, ±1% (Under development) 0.0005~0.005Ω (Under development) -65~170℃ (Under development)
RAP *RAP3216 (Under development) 1206(3216) (Under development) 1 (Under development) ±0.5%, ±1% (Under development) 0.001~0.005Ω (Under development) -55~170℃ (Under development)
*RAP2012 (Under development) 0805(2012) (Under development) 0.5, 1 (Under development) ±0.5%, ±1% (Under development) 0.001~0.005Ω (Under development) -55~170℃ (Under development)
*RAP1220 (Under development) 0508(1220) (Under development) 1 (Under development) ±0.5%, ±1% (Under development) 0.001~0.002Ω (Under development) -55~170℃ (Under development)
*RAP1608 (Under development) 0603(1608) (Under development) 0.5, 1 (Under development) ±0.5%, ±1% (Under development) 0.001~0.005Ω (Under development) -55~155℃ (Under development)
RAE *RAE6432 (Under development) 2512(6432) (Under development) Ambient: 3~4W
Terminal: 5~6W (Under development)		 ±0.5%, ±1% (Under development) 0.0003~0.0033Ω (Under development) -65~170℃ (Under development)
RAE7956 3222(7956) Ambient: 6~8W
Terminal: 10~12W		 ±0.5%, ±1% 0.0002, 0.00027Ω -65~175℃
*RAE1050 (Under development) 3921(10050) (Under development) Ambient: 3~8W
Terminal: 5~10W (Under development)		 ±0.5%, ±1% (Under development) 0.0002~0.003Ω (Under development) -65~170℃ (Under development)

*Under development

Application

  • Automotive ECU

  • ADAS

  • Electrical Devices

Lineup
